🏛 A Bike Stand Inspired by Ancient Roman Columns
The KATZDEN D-NA PK Type is not your typical bike stand — it's an architectural cycle stand from Japanese manufacturer KATZDEN (formerly Katzden Architect), designed to look like a clean, modern column rather than a piece of utility hardware. This is the "PK Type" plain-column version (no bicycle icon cutout), and each unit is a single post with a long oval slot that the front wheel rolls into for support.
⚠️ Please Read Before Ordering — Installation Requirements
This is a serious, permanent installation product, not a place-and-go stand:
- Made to order: production takes approximately 2 weeks before the order ships.
- Requires a reinforced-concrete (RC) foundation. It cannot be installed into tile or asphalt.
- Professional installation is required — this manufacturer explicitly recommends hiring a qualified local contractor, as specialized tools and technical knowledge are needed.
- Sold per individual post/column. The manufacturer's recommended spacing between posts is 600mm (≈23.6 in.) — plan your layout (and consult your installer) based on how many bikes you want to park.
We're flagging this clearly because it's a different commitment than a typical freestanding stand — best suited for storefronts, managed properties, or landscape/architecture projects with a contractor already lined up.
❤️ Why You'll Love It
- Genuinely architectural design — reads as a design element, not just bike storage
- 7 powder-coat color options to match any building or landscape palette
- Permanently anchored — solid, stable parking once professionally installed
- Durable SS400 steel construction with a hot-dip galvanized anchor system
- Simple front-wheel-in-slot use once installed — no kickstand needed
⭐ Key Features
- ✅ Compatible with 20–28 in. wheels, up to 55mm tire width
- ✅ Oval wheel slot: 60mm wide x 570mm long
- ✅ SS400 steel body and base plate
- ✅ Post-installed anchor bolts (M10 x 60mm), hot-dip galvanized steel
- ✅ 7 colors: Pure White, Satin Dark Gray, Satin Black, Signal Red, Pastel Blue, Traffic Yellow, Pale Green
- ✅ Recommended install pitch: 600mm between posts

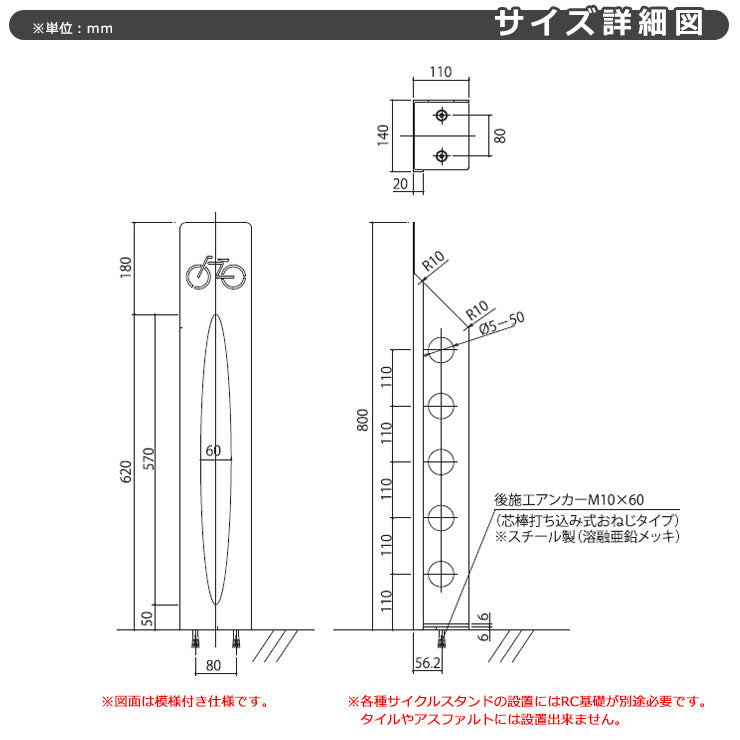

📐 Specifications
| Feature | Details |
|---|---|
| Overall Height | 31.5 in. (800mm) |
| Width | 4.3 in. (110mm) |
| Thickness | 0.8 in. (20mm) |
| Wheel Slot | 2.4 in. wide x 22.4 in. long (60mm x 570mm) |
| Material | SS400 steel (body and base) |
| Anchoring | Post-installed anchor bolts, M10 x 60mm, hot-dip galvanized |
| Foundation Required | Reinforced concrete (RC) only — not compatible with tile or asphalt |
| Recommended Pitch | 600mm (≈23.6 in.) between posts |
| Bike Compatibility | 20–28 in. wheels, up to 55mm tire width |
| Lead Time | Made to order — approx. 2 weeks before shipment |
Product Variants
| Variant | SKU |
|---|---|
| Pure White | DNAPK-PW |
| Satin Dark Gray | DNAPK-SDG |
| Satin Black | DNAPK-SBK |
| Signal Red | DNAPK-RED |
| Pastel Blue | DNAPK-PBL |
| Traffic Yellow | DNAPK-TYL |
| Pale Green | DNAPK-PGR |
Perfect For
🏛 Architectural & Landscape Design Projects
🏪 Storefronts With a Contractor Already Lined Up
🏢 Managed Properties & Public Facilities
🎨 Anyone Who Wants Color-Matched, Design-Forward Bike Parking
Installation Includes
- 1 × KATZDEN D-NA PK Type post (per unit ordered)
- Post-installed anchor bolts (M10 x 60mm)
- Bike not included. RC foundation, professional installation, and specialized tools required (not included)
🏛 Bike Parking as a Design Statement
When bike parking needs to look as good as the building it sits in front of, the KATZDEN D-NA PK Type delivers — a clean architectural column, in a color to match your space, permanently anchored to do the job right.
Order today — and loop in your installer; this one's made to order.
